GPU Instanced Grass Breakdown

Intro

Way back in 2021, I experimented with grass rendering in URP & Shader Graph using GPU Instancing, which can allow us to efficiently render millions of grass blades/quads. At the time that was using Graphics.DrawMeshInstancedProcedural (or DrawMeshInstancedIndirect if instance count needs to be set/adjusted on the GPU)

For a while I’ve had some info/files linked under my FAQ showing a brief example of that setup. But I thought I’d revisit/rewrite those experiments and write up a proper breakdown, which should be easier to find and lets me update some things :

• Unity 2021.2 introduced Graphics.RenderX functions to replace the older Graphics.DrawX functions (and renames “Procedural” to “Primitives”)
• Unity 2022 onwards considers the older functions to be obsolete. For the functions mentioned above, the equivalents would be Graphics.RenderMeshPrimitives and Graphics.RenderMeshIndirect respectively.
• Unity 6 onwards changed the functionality of the Instance ID node, meaning we can support these GPU instancing functions in a less hacky way.

Note that grass rendering is a fairly complex topic and this post only goes through one(ish) setup. There may be grass tools which extend this concept to painting/placing instances by hand, but in my case the grass is spawned automatically. There may also be other rendering techniques (e.g. shell texturing) that could be more suitable depending on the desired artstyle. For more grass tutorials or ready-made tools from others, may be some links on my resources page.

The breakdown below is structured like so :

• Basic Instancing Setup
  • C# Script
  • Shader Graph
• Optional Additions
  • Make grass visible in editor
  • Adapt instance spawning for Terrain
  • Split instances into cells/chunks
  • Simulate wind / swaying
• Adapting Setup for Indirect
  • C# Side
  • Shader Graph
• Adding GPU Frustum Culling
  • Compute Shader
  • C# Changes
  • Shader Graph Include File Changes

Each section here builds on the previous. The idea behind this order being, you could stop after each main section and still have grass rendering. (There’s also tabs, which makes sure the page content is correct for that Unity version)

Basic Instancing Setup

C# Script

We first need some setup on the CPU side to tell Unity to draw our grass. Create a C# script and attach it to a new GameObject in the scene.

We’ll begin the script by exposing some fields to the inspector :

using UnityEngine;

public class DrawGrass : MonoBehaviour {

	public int instanceCount = 1000;
	public Mesh mesh;
	public Material material;

	// ...

}

For this example I’m using the default quad for the grass mesh, which’ll be scattered randomly by the script. Later we’ll set up the shader (used by the assigned material) which will sample a grass texture with alpha clipping.

(You could alternatively use a grass blade mesh. Though if you’re drawing millions of instances you probably don’t want that too high-poly)

private UnityEngine.Rendering.ShadowCastingMode castShadows = UnityEngine.Rendering.ShadowCastingMode.Off;
private bool receiveShadows = true;
// Could also make these shadow settings public / [SerializeField] if you want to expose them to inspector

private MaterialPropertyBlock MPB;
private Bounds bounds;

void OnEnable() {
	MPB = new MaterialPropertyBlock();
	Vector3 boundsSize = new Vector3(20, 1, 20);
	bounds = new Bounds(transform.position + boundsSize * 0.5f, boundsSize);
}

void Update() {
	if (instanceCount <= 0) return;

	Graphics.DrawMeshInstancedProcedural(mesh, 0, material, bounds, instanceCount, MPB, castShadows, receiveShadows);
}

private UnityEngine.Rendering.ShadowCastingMode castShadows = UnityEngine.Rendering.ShadowCastingMode.Off;
private bool receiveShadows = true;
// Could also make these shadow settings public / [SerializeField] if you want to expose them to inspector

private RenderParams rParams;

private MaterialPropertyBlock MPB => rParams.matProps;
private Bounds bounds => rParams.worldBounds;
/*
(These properties are used in SetupInstances() function defined later.
Just allows me to use that snippet in multiple Unity versions...
You can just reference rParams in the function instead if you prefer)
*/

void OnEnable() {
	Vector3 boundsSize = new Vector3(20, 1, 20);
    rParams = new RenderParams(material) {
        worldBounds = new Bounds(transform.position + boundsSize * 0.5f, boundsSize),
        shadowCastingMode = castShadows,
		receiveShadows = receiveShadows,
        matProps = new MaterialPropertyBlock()
    };
	bounds = rParams.worldBounds;
	MPB = rParams.matProps;
}

void Update() {
	if (instanceCount <= 0) return;

	Graphics.RenderMeshPrimitives(rParams, mesh, 0, instanceCount);
}

Instance Data

That triggers the rendering, but to actually control the position of the instances (and optionally colour, etc), we also need to set/pass a ComputeBuffer with that data, which I’ve named instancesBuffer. In this case I’m spawning instances randomly in some bounds.

If you only need Matrix4x4 you could just use that type, or pass multiple buffers with different data types. But to be more flexible I’m using a struct type which allows us to pack multiple types together. We need to be a bit careful to match the memory layout on the shader side though or it can cause crashes. To avoid issues with how different graphics APIs structure the data, always order fields from largest to smallest and use Vector4/float4 instead of Vector3/float3.

#region Instances
	[LayoutKind.Sequential]
	private struct InstanceData {
		public Matrix4x4 matrix;
		//public Color color;

		public static int Size() {
			return
				sizeof(float) * 4 * 4 	// matrix
			//+ sizeof(float) * 4 		// color
			;
			// Alternatively one of these might work to calculate the size automatically?
            // return System.Runtime.InteropServices.Marshal.SizeOf(typeof(InstanceData));
            // return Unity.Collections.LowLevel.Unsafe.UnsafeUtility.SizeOf<InstanceData>();
		}
		/*
			Must match the layout/size of the struct in shader
			See https://docs.unity3d.com/ScriptReference/ComputeBufferType.Structured.html
			To avoid issues with how different graphics APIs structure data :
			- Order by largest to smallest
			- Use Vector4/Color/float4 & Matrix4x4/float4x4 instead of float3 & float3x3
		*/
	}

	private ComputeBuffer instancesBuffer;

	private void SetupInstances(){
		if (instanceCount <= 0) {
			// Avoid negative or 0 instances, as that will crash Unity
            instanceCount = 1;
        }
		InstanceData[] instances = new InstanceData[instanceCount];
		Vector3 boundsSize = bounds.size;
		for (int i = 0; i < instanceCount; i++) {
			// Random Position
			Vector3 position = new(
                Random.Range(0, boundsSize.x),
                0,
                Random.Range(0, boundsSize.z)
            );

			// Random Rotation around Y axis
			Quaternion rotation = Quaternion.Euler(0, Random.Range(0f, 360f), 0);

			// Random Height
			Vector3 scale = new Vector3(1, Random.Range(0.4f, 0.9f), 1);

			// Position Offsets
			position.y += scale.y * 0.5f; // (assuming origin of mesh is in center, like Quad primitive)

			position -= boundsSize * 0.5f; // Makes position relative to bounds center
			// Or if you'd prefer to store the matrix positions in world space, instead use :
			//position += transform.position;
			/*	Though this also requires some changes on the shader side.
				e.g. an additional Transform node converting from World to Object space
			*/

			instances[i] = new(
				matrix = Matrix4x4.TRS(position, rotation, scale)
			);
		}
		instancesBuffer = new ComputeBuffer(instanceCount, InstanceData.Size());
		instancesBuffer.SetData(instances);
		MPB.SetBuffer("_PerInstanceData", instancesBuffer);
	}
#endregion

void OnEnable() {
	// ... (function body from previous snippet)
	SetupInstances();
}

void OnDisable() {
	if (instancesBuffer != null) {
		instancesBuffer.Release();
		instancesBuffer = null;
	}
}

Shader Graph

For the graph, I’m using a Lit Graph since I want the grass to be affected by lighting.

Vertex Stage

To support instancing we need to use the SV_InstanceID shader input semantic. But for versions prior to Unity 6, there isn’t an easy way to do that as it needs to be included in the struct passed to the vertex shader (usually named “Attributes”), or passed as an additional parameter to the vertex function. Both of which are part of the generated code and not accessible in the graph or even through a Custom Function.

But Shader Graph can declare it for us if an “instancing path” is taken. I discovered we could force that by using a Custom Function with a Vector3 input (named In - caps important) and output (named Out) :

Out = In;
#pragma multi_compile _ PROCEDURAL_INSTANCING_ON
#pragma instancing_options procedural:InstancingSetup

That must use String mode as unlike other pragmas, instancing_options must be defined in the main shader and won’t work inside include files. I’ve named this node/function “Procedural” as this code tells the shader to compile the “procedural instancing” variants of the shader.

(In the past I’ve defined the multi_compile in the Blackboard as a Boolean Keyword instead - but afaik declaring it directly in the code here also works)

We then need another Custom Function to attach a HLSL file containing that InstancingSetup function, which can also declare & index the compute buffer (aka StructuredBuffer on this side) used to pass per-instance data in. It must use File mode to allow us to define all that outside the function body. I’ve named this node “Instancing” (matching Instancing_float as defined below)

// Instancing.hlsl
#ifndef GRASS_INSTANCED_INCLUDED
#define GRASS_INSTANCED_INCLUDED

// Declare structure & buffer for passing per-instance data
// This must match the C# side
struct InstanceData {
	float4x4 m;
	//float4 color;
};
StructuredBuffer<InstanceData> _PerInstanceData;

#if UNITY_ANY_INSTANCING_ENABLED

    // Based on ParticlesInstancing
	// https://github.com/Unity-Technologies/Graphics/blob/master/Packages/com.unity.shadergraph/Editor/Generation/Targets/BuiltIn/ShaderLibrary/ParticlesInstancing.hlsl
	// and/or
	// https://github.com/TwoTailsGames/Unity-Built-in-Shaders/blob/master/CGIncludes/UnityStandardParticleInstancing.cginc

	void InstancingMatrices(inout float4x4 objectToWorld, out float4x4 worldToObject) {
		InstanceData data = _PerInstanceData[unity_InstanceID];

        // If matrix is relative to Bounds :
		objectToWorld = mul(objectToWorld, data.m);

		// Alternatively, if instanced matrices are stored in world space we can override matrix :
		//objectToWorld = data.m;
		// This would avoid needing an additional World->Object conversion in the graph

		// ----------
        // If World->Object transforms are required :

        //worldToObject = transpose(objectToWorld);
		/*
			Assuming an orthogonal matrix (no scaling),
			the above would be a cheap way to calculate an inverse matrix
        	Otherwise, use the below :
		*/

		// Calculate Inverse transform matrix :
		float3x3 w2oRotation;
		w2oRotation[0] = objectToWorld[1].yzx * objectToWorld[2].zxy - objectToWorld[1].zxy * objectToWorld[2].yzx;
		w2oRotation[1] = objectToWorld[0].zxy * objectToWorld[2].yzx - objectToWorld[0].yzx * objectToWorld[2].zxy;
		w2oRotation[2] = objectToWorld[0].yzx * objectToWorld[1].zxy - objectToWorld[0].zxy * objectToWorld[1].yzx;

		float det = dot(objectToWorld[0].xyz, w2oRotation[0]);
		w2oRotation = transpose(w2oRotation);
		w2oRotation *= rcp(det);
		float3 w2oPosition = mul(w2oRotation, -objectToWorld._14_24_34);

		worldToObject._11_21_31_41 = float4(w2oRotation._11_21_31, 0.0f);
		worldToObject._12_22_32_42 = float4(w2oRotation._12_22_32, 0.0f);
		worldToObject._13_23_33_43 = float4(w2oRotation._13_23_33, 0.0f);
		worldToObject._14_24_34_44 = float4(w2oPosition, 1.0f);

        /*
			This may be quite expensive and this function runs in both vertex and fragment shader
			(Though if the matrix is unused the compiler might remove? Unsure)
			Could instead calculate inverse matrices on the CPU side and pass them in too
			(Though would mean double the GPU memory is needed)
		*/
	}

	void InstancingSetup() {
		/* // For HDRP may also need to remove/override these macros. Untested.
		#undef unity_ObjectToWorld
		#undef unity_WorldToObject
		*/
		InstancingMatrices(unity_ObjectToWorld, unity_WorldToObject);
	}

#endif

// Shader Graph Functions

// Just passes the position through, allows us to actually attach this file to the graph.
// Should be placed somewhere in the vertex stage, e.g. right before connecting the object space position.
void Instancing_float(float3 Position, out float3 Out){
	Out = Position;
}

#endif

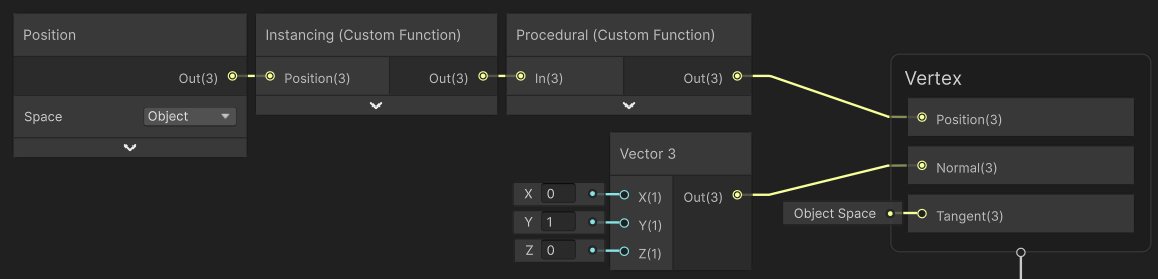

In both custom functions, Out = In;/Out = Position; is just so we can hook the node up to the Master Stack - which is required for the code to be included in the final generated shader. We should make all these ports Vector3 so we can pass the Position node (Object space) through, and connect to the Position port in the Vertex stage.

While the functions don’t alter the value passed through, the procedural instancing setup overrides the matrices used by the graph behind the scenes when converting between Object & World space - automatically applying to the Position, Normal (and Tangent) Vector ports/blocks/nodes.

Due to this and the C# side which sets the matrix rotation to match the terrain normal, we can make the grass normal match the terrain’s normal (to make it shaded/lit the same) by simply attaching a Vector3 node set to (0, 1, 0) to the Normal port as shown above.

For versions prior to 2021.2, we may also want a function to return the Instance ID if needed in the graph. e.g. could be used as the Seed to a Random Range node to generate a random value for each instance. This can be placed in the same file and used by multiple Custom Function nodes - thanks to the #ifndef GRASS_INSTANCED_INCLUDED at the top which prevents the file being included multiple times.

void GetInstanceID_float(out float Out){
	Out = 0;
	#ifndef SHADERGRAPH_PREVIEW
	#if UNITY_ANY_INSTANCING_ENABLED
	Out = unity_InstanceID;
	#endif
	#endif
}

For 2021.2+, this is already exposed through the Instance ID node.

As mentioned in the intro, Unity 6 changed the functionality of the Instance ID node so that it hooks directly into defining the SV_InstanceID semantic. We can pass this into a Custom Function to define and index our per-instance data compute buffer (which defaults to a StructuredBuffer object on the shader side)

Note the Custom Function must use File mode to allow us to define the buffer outside the function body.

// Instancing.hlsl
#ifndef GRASS_INSTANCED_INCLUDED
#define GRASS_INSTANCED_INCLUDED

// Declare structure & buffer for passing per-instance data
// This must match the C# side
struct InstanceData {
	float4x4 m;
	//float4 color;
};
StructuredBuffer<InstanceData> _PerInstanceData;

// Shader Graph function(s)

void Instancing_float(float3 Position, float InstanceID, out float3 OutPosition, out float3 OutNormal){
    InstanceData data = _PerInstanceData[InstanceID];

    OutPosition = mul(data.m, float4(Position, 1)).xyz;
    OutNormal = mul(data.m, float4(0, 1, 0, 0)).xyz;

	/*
		Shader Graph assumes Object space for the Vertex stage ports in the Master Stack
		  so will apply the Object->World transform behind the scenes.
		If matrices are in world space rather than relative to bounds, undo that by
		  using an additional Transform node in graph,
		  or Subtract Position output from the Object node.
		(Should only be important for Position, as model matrix
		  won't include rotation for instanced rendering afaik)
	*/
}

#endif

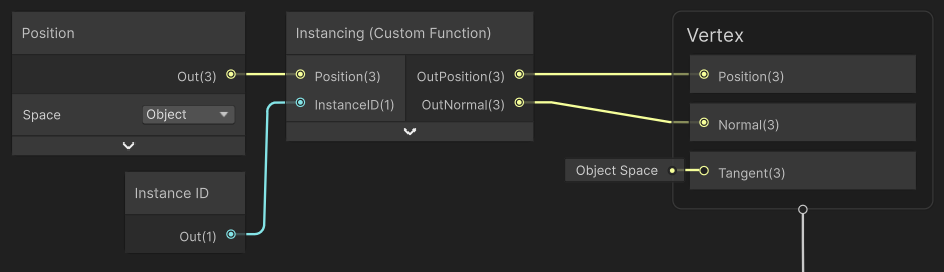

The Position node (Object) space is connected to the first port, and Instance ID to the second. The outputs are used in the Position and Normal ports in the Vertex stage of the Master Stack.

In previous Unity versions we instead had to rely on the “procedural instancing path” to force the Instance ID to be generated. (Can switch the tab above temporarily to see what that looks like). A somewhat important difference is that allowed us to override the matrices used for converting between Object & World space - which automatically would apply to these ports. Since we aren’t using that setup, we need to handle the matrix transformations manually, hence mul() in the code shown above. And as commented above, you may need some additional nodes if matrices store world space positions.

If you have more per-instance data you could add another out param & output to the node. Though, Shader Graph doesn’t usually allow connecting a node to both stages. For values that need to connect to the Fragment stage, we’ll create a separate function - see below.

After saving the graph we should now see our instances, though they don’t have a texture yet.

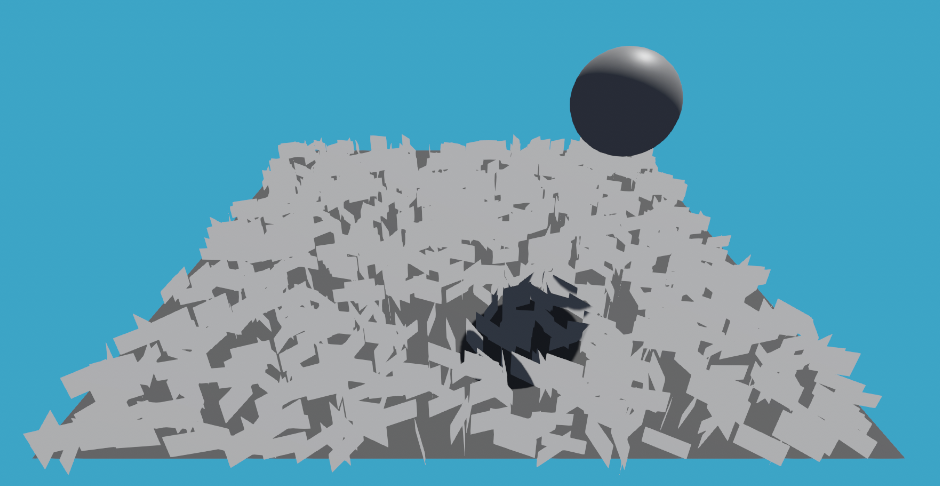

1024 instances rendering in bounds of 20x20 units. A darker grey plane (with x2 scale) is placed below.

Fragment Stage

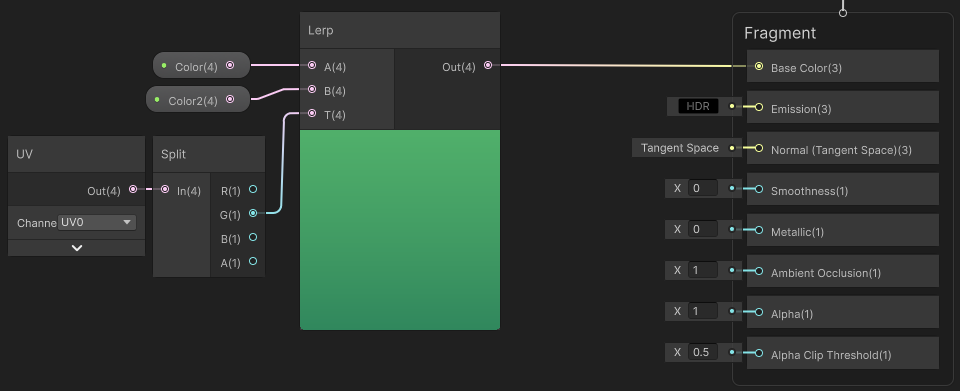

For the fragment side things are much simpler. We can apply a simple colour gradient using the UV0.y and input into the Base Color :

If you have per-Instance data for the fragment stage you can add another Custom Function node and function to the file to output those. For example for an instanced colour (as commented in the InstanceData) :

void InstancingFragment_float(float InstanceID, out float4 Out){
    InstanceData data = _PerInstanceData[InstanceID];
    Out = data.color;
}

// Or for versions older than 2021.2 :
/*
void InstancingFragment_float(out float4 Out){
    InstanceData data = _PerInstanceData[unity_InstanceID];
    Out = data.color;
}
*/

Which could replace one of the Color properties, or Multiply after to tint both.

Under the Graph Settings (tab of Graph Inspector window), we can enable Alpha Clipping which adds some blocks to the Master Stack. I’ve left the Alpha Clip Threshold at 0.5. To control the Alpha, I’m applying a grass texture.

For added variation this texture contains multiple grass blade shapes (and somewhat thick/blocky for a more stylised look - I much prefer this over pointy grass, but up to you) :

Very quickly drawn… but does the job.

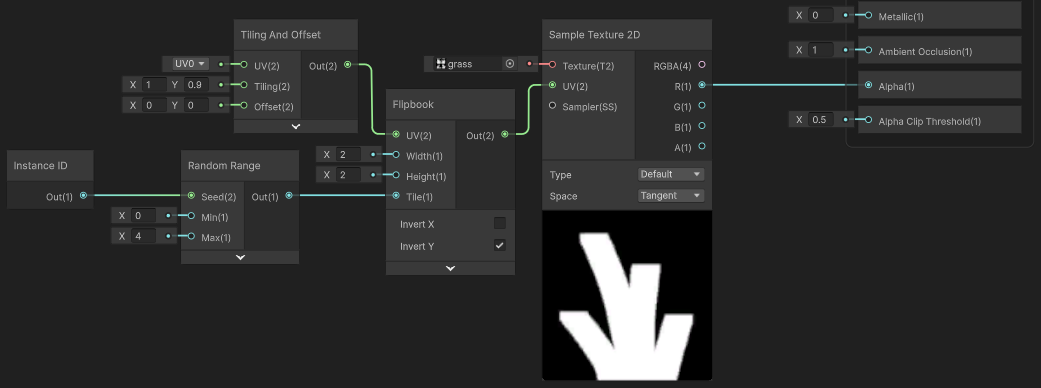

To randomly select a portion of the texture I’m using the Flipbook node with Width and Height set to 2 (since the texture contains 2x2 grass tiles), with the Tile port set to the Instance ID node (or output unity_InstanceID for older versions) into a Random Range node (Min of 0 to Max of 4)

As shown above I’ve also used a Tiling And Offset node with a Y tiling of 0.9, connected to the UV port on the Flipbook. This stretches the texture slightly to avoid previous tiles leaking through at the top of the texture.

Note that using the Instance ID here assumes the instances are consistent. If the buffer is updated you’d likely need to store a random value in the InstanceData instead. (In the past I used the color.a for that, as transparency isn’t used)

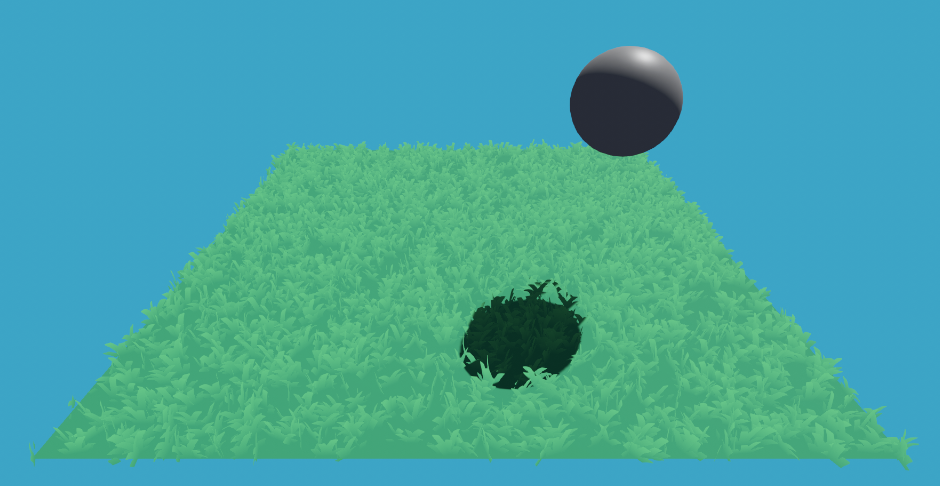

Looking better!

3200 instances (20x20 bounds). Also recoloured plane to same colour used by Color2 property.

Optional Additions

With all the above you should at least be able to see the grass during play mode.

Below are some optional things we can add/adjust. May not be full examples but starting points at least :

[ExecuteAlways] // Allow grass rendering while not in play mode
public class DrawGrass : MonoBehaviour {

// in DrawGrass.cs :

public void Refresh() {
    OnDisable();
    OnEnable();
}

// in DrawGrassEditor.cs (must be placed in a folder named "Editor") :

using UnityEngine;
using UnityEditor;

[CustomEditor(typeof(DrawGrass))]
public class DrawGrassEditor : Editor {

    public override void OnInspectorGUI() {
        base.OnInspectorGUI();

        bool clicked = GUILayout.Button("Refresh");
        if (clicked) {
            DrawGrass grass = target as DrawGrass;
            grass.Refresh();
        }
    }
}

If using a Terrain component in the scene we could also adapt the C# Script to use that to spawn the grass.

With terrain.SampleHeight we can move the grass upwards to match the terrain height and by creating the rotation with terrainData.GetInterpolatedNormal we can optionally make the grass match the slope of the terrain. That normal can also be extracted from the matrix in the shader later, to make the shading match the terrain - so the grass blends in better/softly, as if it’s part of the terrain rather than just placed ontop.

(If you use the “Random Rotation around Y axis” rotation above instead, you may still want to keep the normal calculation and pass that into shader by adding a Vector4/float4 to the InstanceData. Be sure to update the Size method as well)

For example, might be something like :

public Terrain terrain;
// expose terrain object to inspector,
// or set private & uncomment line in OnEnable() if script is attached to same GameObject

...

private void SetupInstances() {
	TerrainData terrainData = terrain.terrainData;
	Vector3 terrainSize = terrainData.size;

	InstanceData[] instances = new InstanceData[instanceCount];
	for (int i = 0; i < instanceCount; i++) {
		Vector3 position = new(
			Random.Range(0, terrainSize.x),
			0,
			Random.Range(0, terrainSize.z)
		);

		// Align rotation to terrain normal
		Vector3 normal = terrainData.GetInterpolatedNormal(position.x / terrainSize.x, position.z / terrainSize.z);
		float dot = Mathf.Abs(Vector3.Dot(normal, Vector3.forward));
		float dot2 = Mathf.Abs(Vector3.Dot(normal, Vector3.right));
		Vector3 perp = Vector3.Cross(normal, (dot2 > dot) ? Vector3.right : Vector3.forward);
		Vector3 forward = Quaternion.AngleAxis(Random.Range(0f, 360f), normal) * perp; // Random rotation around normal
		Quaternion rotation = Quaternion.LookRotation(forward, normal);

		Vector3 scale = new Vector3(1, Random.Range(0.4f, 0.9f), 1); // Random Height
		position.y += scale.y * 0.5f; // assuming origin of mesh is in center, like the unity primitive Quad

		// If you want positions stored in world space,
		/*
		position += transform.position;
		position.y += terrain.SampleHeight(position);
		*/
		// else :
		position.y += terrain.SampleHeight(transform.position + position);
		position -= bounds.size * 0.5f; // make position relative to bounds center
		// (SampleHeight still expects world space, hence the "transform.position +")

		instances[i] = new() {
			matrix = Matrix4x4.TRS(position, rotation, scale)
		};
	}

	if (instancesBuffer == null)
		instancesBuffer = new ComputeBuffer(instanceCount, InstanceData.Size());

	instancesBuffer.SetData(instances);
	MPB.SetBuffer("_PerInstanceData", instancesBuffer);
}

...

void OnEnable() {
	...
	//terrain = GetComponent<Terrain>();
	Vector3 boundsSize = terrain.terrainData.size;
	...
}

Of note, this example spawns grass across the entire terrain which could be costly, both in terms of rendering those instances and their storage in memory/VRAM. For large terrains it’s likely that you’d want to adjust/optimise this - Maybe by only spawning grass within some bounds around the player/camera.

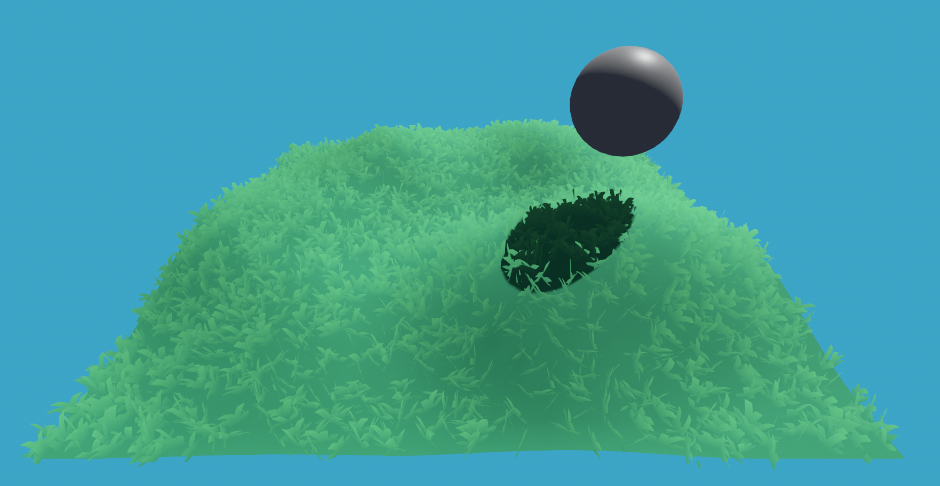

3200 instances rendering on a (very small) 20x20 width/height terrain

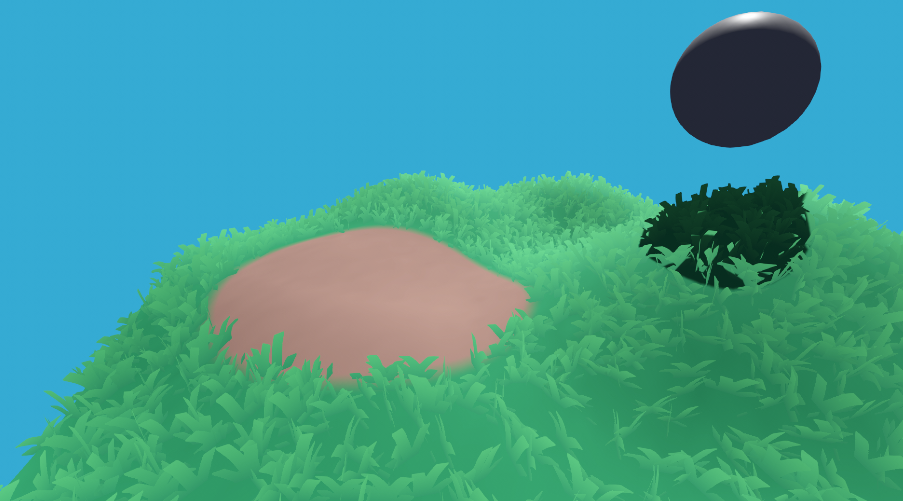

May also want to extend this further too. i.e. Obtain the alpha/splat maps from TerrainData to prevent grass spawning on some terrain textures. And/or to adjust grass colours (via the float4 color in InstanceData)

public float cellSize = 5; // Desired cell size, changes to fit into bounds/terrainSize

...

private void SetupInstances() {
	InstanceData[] instances = new InstanceData[instanceCount];

	float terrainSize = 20; // Assuming square area
	// Or if using terrain,
	//terrainSize = terrain.terrainData.size.x; // Assuming square terrain

	int rowCount = (int)(terrainSize / cellSize);
	int cellCount = rowCount * rowCount;
	cellSize = terrainSize / rowCount;
	int instanceCountPerCell = instanceCount / cellCount;

	for (int y = 0; y < rowCount; y++) {
		for (int x = 0; x < rowCount; x++) {
			for (int i = 0; i < instanceCountPerCell; i++) {

				Vector3 position = new(
					x * cellSize + Random.Range(0, cellSize),
					0,
					y * cellSize + Random.Range(0, cellSize)
				);

				...

				instances[(y * rowCount + x) * instanceCountPerCell + i] = new() {
					matrix = Matrix4x4.TRS(position, rotation, scale)
				};
			}
		}
	}
	if (instancesBuffer == null){
		instancesBuffer = new ComputeBuffer(instanceCount, InstanceData.Size());
	}
	instancesBuffer.SetData(instances);
	MPB.SetBuffer("_PerInstanceData", instancesBuffer);
}

We can also add Vertex Displacement to make the grass less static.

For Unity6+ versions this should be done on the output from the Custom Function node. If applied to the input, the displacement would instead be relative to each instance, but in this case we want the wind applied in the same direction for all instances.

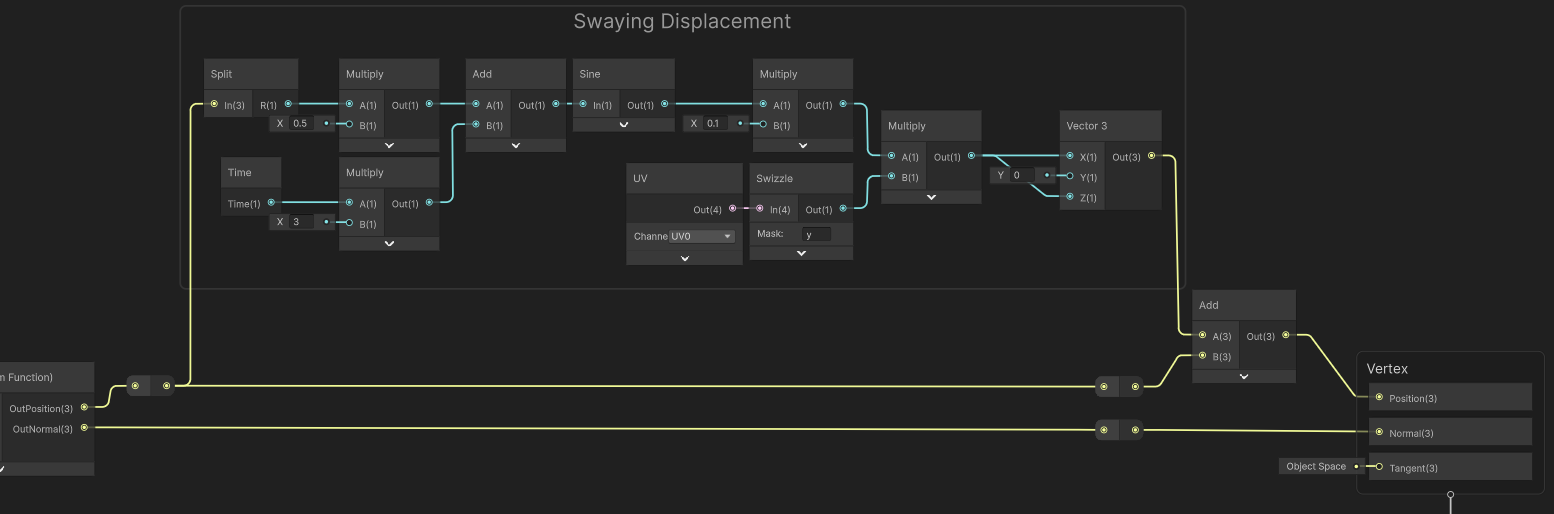

Using Time into a Sine node setup as shown below produces a light wind/swaying effect :

Unity6+ graph shown, but same idea in older versions. (Click image to view larger version)

Can adjust the values here for a stronger wind, but the motion may look unrealistic. You’d probably want to look into a more accurate method for that. But this is as far as I’m going for this tutorial.

Adapting Setup for Indirect

C# Side

There may be optimisations we can do to our instancing rendering to make it perform better, such as Frustum Culling on the GPU via a Compute Shader (which the next section provides an example of). But for that to be able to adjust the number of instances that get drawn, we first need to switch to using the Indirect version of the instancing function.

That also requires an additional buffer known as the “indirect arguments”, which stores :

• Index Count
• Instances Count
• Start Index
  • (Mostly only important if you are drawing a submesh other than the first)
• Base Vertex Index
  • (Set if submeshes have an offset, see Mesh.GetBaseVertex)
• Start Instance
  • (We’ll leave this at 0 to draw all instances. You might set this to a different value if the instances buffer holds data for other instanced calls. This in combination with the Instances Count would let you draw a section of that buffer. But supporting this requires additional setup on the shader side… which isn’t documented)

...

#region IndirectArgs
private ComputeBuffer argsBuffer;

private void SetupIndirectArgs(){
	argsBuffer = new ComputeBuffer(1, args.Length * sizeof(uint), ComputeBufferType.IndirectArguments);

	// Init
	uint[] args = new uint[5] { 0, 0, 0, 0, 0 };
	args[0] = (uint)mesh.GetIndexCount(0);
	args[1] = (uint)instanceCount;
	// and optionally,
	args[2] = (uint)mesh.GetIndexStart(0);
	args[3] = (uint)mesh.GetBaseVertex(0);
	args[4] = 0;

	argsBuffer.SetData(args);
}
#endregion

void OnEnable() {
	if (instancesBuffer != null) return;

	SetupInstances();
	SetupIndirectArgs();

	//... (etc, see previous setup)
}

void OnDisable() {
	if (instancesBuffer != null) {
		instancesBuffer.Release();
		instancesBuffer = null;
	}
	if (argsBuffer != null) {
		argsBuffer.Release();
		argsBuffer = null;
	}
}

void Update() {
	if (instanceCount <= 0 || instancesBuffer == null) return;
	if (argsBuffer == null) return;

	Graphics.DrawMeshInstancedIndirect(mesh, 0, material, bounds, argsBuffer, 0, MPB, castShadows, receiveShadows);
}

#region IndirectArgs
    private GraphicsBuffer indirectBuffer;
    private GraphicsBuffer.IndirectDrawIndexedArgs[] commandData;
    private int commandCount;

    private void SetupIndirectArgs() {
        commandCount = 1;
        commandData = new GraphicsBuffer.IndirectDrawIndexedArgs[commandCount];
        commandData[0].indexCountPerInstance = mesh.GetIndexCount(0);
        commandData[0].instanceCount = (uint)instanceCount;
		// and optionally,
		commandData[0].startIndex = mesh.GetIndexStart(0);
		commandData[0].baseVertexIndex = mesh.GetBaseVertex(0);
		commandData[0].startInstance = 0;

        indirectBuffer = new GraphicsBuffer(GraphicsBuffer.Target.IndirectArguments, commandCount, GraphicsBuffer.IndirectDrawIndexedArgs.size);
        indirectBuffer.SetData(commandData);
    }
#endregion

void OnEnable() {
	if (instancesBuffer != null) return;

	SetupInstances();
	SetupIndirectArgs();

	//... (etc, see previous setup)
}

void OnDisable() {
	instancesBuffer?.Release();
	instancesBuffer = null;
	indirectBuffer?.Release();
	indirectBuffer = null;
}

void Update() {
	if (instanceCount <= 0 || instancesBuffer == null) return;
	if (indirectBuffer == null) return;

	Graphics.RenderMeshIndirect(rParams, mesh, indirectBuffer, commandCount);
}

Shader Graph

At least for this tutorial, we don’t really need changes on the shader side to support the Indirect instancing functions, provided you leave the startInstance in the indirect arguments Buffer at 0, and only have a single command.

#define UNITY_INDIRECT_DRAW_ARGS IndirectDrawIndexedArgs
#include "UnityIndirect.cginc"

#if defined(SHADER_API_VULKAN) || defined(SHADER_API_WEBGPU)
uint GetIndirectInstanceID(IndirectDrawIndexedArgs args, uint svInstanceID) {
	return svInstanceID - args.startInstance;
}
uint GetIndirectInstanceID_Base(IndirectDrawIndexedArgs args, uint svInstanceID) {
	return svInstanceID;
}
#else
uint GetIndirectInstanceID(IndirectDrawIndexedArgs args, uint svInstanceID) {
	return svInstanceID;
}
uint GetIndirectInstanceID_Base(IndirectDrawIndexedArgs args, uint svInstanceID) {
	return svInstanceID + args.startInstance;
}
#endif
// (Later also defines functions without the first input, which is what
// "#define UNITY_INDIRECT_DRAW_ARGS IndirectDrawIndexedArgs" before the #include is for.
// For non-indexed draw functions you would use IndirectDrawArgs instead on both C#/shader sides.

#ifndef GRASS_INSTANCED_INCLUDED
#define GRASS_INSTANCED_INCLUDED

#define UNITY_INDIRECT_DRAW_ARGS IndirectDrawIndexedArgs
#include "UnityIndirect.cginc"

// Declare structure & buffer for passing per-instance data
// This must match the C# side
struct InstanceData {
	float4x4 m;
	//float4 color;
};
StructuredBuffer<InstanceData> _PerInstanceData;

// Shader Graph function(s)

void Instancing_float(float3 Position, float InstanceID, out float3 OutPosition, out float3 OutNormal){
	InitIndirectDrawArgs(0);
    uint index = GetIndirectInstanceID_Base(InstanceID);
    InstanceData data = _PerInstanceData[index];

    OutPosition = mul(data.m, float4(Position, 1)).xyz;
    OutNormal = mul(data.m, float4(0, 1, 0, 0)).xyz;
}

// (and same GetIndirectInstanceID_Base usage in other functions where buffers are indexed using InstanceID)

#endif

Adding GPU Frustum Culling

Now that we’ve switched to Indirect we can add Frustum Culling to prevent instances being drawn outside of the camera view, as well as optionally limit the distance we render at (if you want that different from the camera’s far plane value)

500K instances in an 256x256 area.
Rendering ~89K instances due to frustum culling (FOV = 60 & Far Plane = 100).
In my case performs 500FPS+ regardless of frustum culling (but it does help), but scene is empty and measured based on a (few years old) high-end PC GPU. Probably better to profile for yourself.

The implementation will include :

• Provide an additional uint buffer using the “Append” type, which will hold indices of which instances to draw.
• Use a Compute Shader to check which instance positions are within the camera frustum and append them to that buffer. I’ll be transforming the positions into clip space to handle that.
• The instanceCount in the indirect args buffer will be updated to match the count of this buffer. Can handle this by using GraphicsBuffer.CopyCount to copy a “hidden counter” associated with the Append buffer to the Indirect Args buffer.
• In the shader graph include file, we index this ViewIndices buffer using the InstanceID and use that result to index the PerInstance buffer, (rather than using the InstanceID directly)

Compute Shader

Firstly let’s set up the compute shader. This should be a file with the .compute file extension.

#pragma kernel FrustumCullInstances

#include "Instancing.hlsl" // ShaderGraph include file (assumes this is in the same folder)
// Alternatively, copy structure & buffers. But as we must keep them in sync, it's easier to use an #include
/*
struct InstanceData {
	float4x4 m;
    // Layout must match C# side
};
StructuredBuffer<InstanceData> _PerInstanceData;
*/

AppendStructuredBuffer<uint> _VisibleIDsAppend; // Buffer that holds the indices of visible instances

float4x4 _Matrix; // (matrix passed in should convert to Clip Space e.g. projection * view * model)
float _MaxDrawDistance;
uint _StartOffset;

[numthreads(64, 1, 1)]
void FrustumCullInstances (uint3 id : SV_DispatchThreadID) {
	InstanceData data = _PerInstanceData[_StartOffset + id.x];
	float4 absPosCS = abs(mul(_Matrix, float4(data.m._m03_m13_m23, 1.0)));

	if (   absPosCS.x <= absPosCS.w * 1.1 + 0.5
	    && absPosCS.y <= absPosCS.w * 1.1 + 0.5	// (scaling/padding hides pop-in/out at screen edges)
	    && absPosCS.z <= absPosCS.w
	    && absPosCS.w <= _MaxDrawDistance		// optional max draw distance
		){
        // Is inside camera frustum
		_VisibleIDsAppend.Append(_StartOffset + id.x);
	}
}

To handle the culling, the compute shader transforms the instance positions (extracted from the matrices using _m03_m13_m23) into Clip Space. This is the same space that vertex shaders typically output to, though in this case the projection matrix used will be passed from the C# script without using GL.GetGPUProjectionMatrix, so follows the OpenGL conventions that Unity uses by default. This is useful as we don’t need to worry about how the clip space Z would differ in other graphics APIs.

To test whether this point is within the camera frustum, we simply take the abs(), and use <= to compare against the W component. When this passes we add the index to the AppendStructuredBuffer.

This works because while the camera culls in a frustum in terms of View space. After the projection matrix, that area is a cube in Clip space (in OpenGL convention at least), with XYZ components ranging from -W to W (where W is the fourth component of that position). For the XY axis, (0,0) is the screen center. For the Z axis, -W is at the near plane and W is at the far plane. (Meaning the camera would typically be at some Z distance smaller than -W. We don’t normally need the camera’s position in clipspace but might be good to have that kind of reference point to help you visualise the space)

Also note that Z=0 wouldn’t be half-way between as depth is non-linear - as explained further in my post on Depth.

C# Changes

On the C# side we need to set up that additional buffer and pass it to the instanced rendering & compute shader (which is exposed to and assigned in the inspector). Note that the property names are different to avoid conflicts (when using the #include line in the compute shader), because the buffer needs to be defined as an AppendStructuredBuffer in the compute shader but a StructuredBuffer in the regular shader to be able to index it. (Hence _VisibleIDsAppend and _VisibleIDs)

public ComputeShader computeFrustumCulling;
...
void SetupInstances(){
	...
	visibleBuffer = new ComputeBuffer(instanceCount, sizeof(uint), ComputeBufferType.Append);
	// may also want to initalise to showing all instances, not sure how important that is though.
	/*
	uint[] ids = new uint[instanceCount];
	...
	ids[i] = i;
	...
	visibleBuffer.SetData(ids);
	*/
}

void OnEnable() {
	...
	rParams.matProps.SetBuffer("_VisibleIDs", visibleBuffer);

	int kernel = 0;
	/*
	0 to reference first kernel in compute file
	Could alternatively use computeFrustumCulling.FindKernel("FrustumCullInstances");
	and cache that in a private variable for use in Update too
	*/

    computeFrustumCulling.SetBuffer(kernel, "_PerInstanceData", instancesBuffer);
    computeFrustumCulling.SetBuffer(kernel, "_VisibleIDsAppend", visibleBuffer);
    computeFrustumCulling.SetFloat("_MaxDrawDistance", 100);
	computeFrustumCulling.SetInt("_StartOffset", 0); // set to "Start Instance" in indirect args if used
}

void OnDisable() {
	...
	visibleBuffer?.Release();
    visibleBuffer = null;
}

For Update() we reset a “hidden counter” on the append buffer which keeps track of how many elements are in the buffer. Then pass the view projection matrix to the compute shader and Dispatch to execute it. To update the instance count used by the instancing call, we copy the counter to the Indirect Args Buffer by using GraphicsBuffer.CopyCount. The third parameter of that needs to be 1 * sizeof(uint) (equivalent to a value of 4) as the instance count is the second uint in the buffer. This occurs on the GPU without copying to / stalling the CPU.

(Of note, the actual append buffer size/length is fixed when the ComputeBuffer is created. The counter just allows Append() calls in the shader to override existing data. Without the reset, appending would continue to increment the hidden counter every frame. It wouldn’t write to the buffer out of bounds, but it would cause the instanced rendering to draw many overlapping instances (indexing the first _PerInstanceData entry) before crashing)

// Frustum Culling
if (computeFrustumCulling != null) {
	// Reset Visible Buffer
    visibleBuffer?.SetCounterValue(0);

	// Set Matrix & Dispatch Compute Shader
    Camera cam = Camera.main;
	Matrix4x4 m = Matrix4x4.Translate(bounds.center);
    Matrix4x4 v = cam.worldToCameraMatrix;
    Matrix4x4 p = cam.projectionMatrix;
    // With regular shaders you'd normally use GL.GetGPUProjectionMatrix to convert this matrix to graphics API being used
    // but in this case the compute shader expects the OpenGL convention that Unity uses by default

	Matrix4x4 mvp = p * v * m;
	// (If instanced matrices are stored in world space can remove the m matrix here)
	computeFrustumCulling.SetMatrix(prop_Matrix, mvp);

	/*
		Note : If you have multiple objects creating grass,
	   	either need to make sure the buffers are set here.
	   	Or create & use an instance of the compute shader, e.g.
	   	Instantiate(computeFrustumCulling) in Start() & Destroy that in OnDestroy()
	*/

	int kernel = 0; // or cache computeFrustumCulling.FindKernel("FrustumCullInstances");
    uint numthreads = 64;
    // keep in sync with compute shader, or set automatically with :
    //computeFrustumCulling.GetKernelThreadGroupSizes(kernel, out numthreads, out _, out _);
	// (probably in OnEnable & cache in private variable for usage here)

    computeFrustumCulling.Dispatch(kernel, Mathf.CeilToInt((float)instanceCount / numthreads), 1, 1);

	// Copy Counter to Instance Count in Indirect Args
    ComputeBuffer.CopyCount(visibleBuffer, argsBuffer, 1 * sizeof(uint));
}

Graphics.DrawMeshInstancedIndirect(mesh, 0, material, bounds, argsBuffer, 0, MPB, castShadows, receiveShadows);

private readonly int prop_Matrix = Shader.PropertyToID("_Matrix");

void Update() {
	if (instanceCount <= 0 || instancesBuffer == null) return;
	if (indirectBuffer == null) return;

	// Frustum Culling
	if (computeFrustumCulling != null) {
		// Reset Visible Buffer
        visibleBuffer?.SetCounterValue(0);

		// Set Matrix & Dispatch Compute Shader
        Camera cam = Camera.main;
        Matrix4x4 m = Matrix4x4.Translate(bounds.center);
        Matrix4x4 v = cam.worldToCameraMatrix;
        Matrix4x4 p = cam.projectionMatrix;
        // With regular shaders you'd normally use GL.GetGPUProjectionMatrix to convert this matrix to graphics API being used
        // but in this case the compute shader expects the OpenGL convention that Unity uses by default

		Matrix4x4 mvp = p * v * m;
		// (If instanced matrices are stored in world space can remove the m matrix here)
		computeFrustumCulling.SetMatrix(prop_Matrix, mvp);

		/*
			Note : If you have multiple objects creating grass,
		   	either need to make sure the buffers are set here.
		   	Or create & use an instance of the compute shader, e.g.
		   	Instantiate(computeFrustumCulling) in Start() & Destroy that in OnDestroy()
		*/

        uint numthreads = 64;
        // keep in sync with compute shader, or set automatically with :
        //computeFrustumCulling.GetKernelThreadGroupSizes(kernel, out numthreads, out _, out _);
		// (probably in OnEnable & cache in private variable for usage here)

        int kernel = 0; // or cache computeFrustumCulling.FindKernel("FrustumCullInstances");
        computeFrustumCulling.Dispatch(kernel, Mathf.CeilToInt(instanceCount / numthreads), 1, 1);

		// Copy Counter to Instance Count in Indirect Args
        GraphicsBuffer.CopyCount(visibleBuffer, indirectBuffer, 1 * sizeof(uint));
    }

    Graphics.RenderMeshIndirect(rParams, mesh, indirectBuffer, commandCount);
}

The values in the Dispatch call are how many thread-groups to launch, so to run the compute shader on instanceCount, we need to divide by the thread-group sizes we set in the compute shader. Can either hardcode this and be sure to keep them in sync, or call ComputeShader.GetKernelThreadGroupSizes.html.

Note that we also cast the count to float and round up (using Mathf.CeilToInt) to ensure we dispatch enough thread-groups to cover all the instances. Though this sometimes means threads are wasted - though unlikely to make much difference on performance. Could make instanceCount a multiple of the numthreads (64) to avoid that.

Camera cam = Camera.main;
#if UNITY_EDITOR
    if (Camera.current != null) {
    	cam = Camera.current;
    }
#endif

Shader Graph Include File Changes

Finally, we need to adjust the file used by our Custom Function node(s) to define the VisibleIDs Buffer (_VisibleIDs), index it using the InstanceID and use the result to index _PerInstanceData :

#ifndef GRASS_INSTANCED_INCLUDED
#define GRASS_INSTANCED_INCLUDED

// Declare structure & buffer for passing per-instance data
struct InstanceData {
	float4x4 m;
	//float4 color;
    // Layout must match C# side
};
StructuredBuffer<InstanceData> _PerInstanceData;
StructuredBuffer<uint> _VisibleIDs;

void Instancing_float(float3 Position, uint InstanceID, out float3 OutPosition, out float3 OutNormal){
	uint index = _VisibleIDs[InstanceID];
	InstanceData data = _PerInstanceData[index];
	OutPosition = mul(data.m, float4(Position, 1)).xyz;
    OutNormal = mul(data.m, float4(0, 1, 0, 0)).xyz;
}

// If using other per-instance data for fragment stage, update this too
void InstancingFragment_float(float InstanceID, out float4 Out){
    uint index = _VisibleIDs[InstanceID];
	InstanceData data = _PerInstanceData[index];
    Out = data.color;
}

#endif

#ifndef GRASS_INSTANCED_INCLUDED
#define GRASS_INSTANCED_INCLUDED

// Declare structure & buffer for passing per-instance data
// This must match the C# side
struct InstanceData {
	float4x4 m;
	//float4 color;
};
StructuredBuffer<InstanceData> _PerInstanceData;
StructuredBuffer<uint> _VisibleIDs;

#if UNITY_ANY_INSTANCING_ENABLED

	void InstancingMatrices(inout float4x4 objectToWorld, out float4x4 worldToObject) {
		uint index = _VisibleIDs[unity_InstanceID];
		InstanceData data = _PerInstanceData[index];

		// ... (rest is same as before)

#endif

// If using functions that access other per-instance data, update those too. e.g.
void InstancingFragment_float(out float4 Out){
    uint index = _VisibleIDs[unity_InstanceID];
	InstanceData data = _PerInstanceData[index];
    Out = data.color;
}

void VisibleID_float(uint InstanceID, out float Out){
	Out = _VisibleIDs[InstanceID];
}

void GetInstanceID_float(out float Out){
	Out = 0;
	#ifndef SHADERGRAPH_PREVIEW
	#if UNITY_ANY_INSTANCING_ENABLED
	Out = _VisibleIDs[unity_InstanceID];
	#endif
	#endif
}

Wrap up

For further optimisations, it could also make sense to try implementing Occlussion Culling, to stop rendering grass that is behind other objects. Probably more important for scenes that contain many objects/walls/hills that could actually block large amounts of grass. If you want to look into that, I’ve seen examples from others that uses a Hierarchical Depth (Hi-Z) Buffer to do this I think. But not something I’ve looked into, and this post is already long enough…

Compared to my old FAQ example, this took much longer than expected to write, (the tabs to change page content for different Unity versions probably didn’t help that). Hopefully I didn’t ramble on too much, but I’m sure it’ll be useful regardless!~

Support me on Ko-fi! ✨

Join my discord! 💬
